ACEBEAM · X35
Acebeam X35 Multi-Light
Beam profile
Beam angle estimated (from lumens and beam distance)
Hover the diagram to see beam width at distance.
Specifications
- Max. output:
20000 Lumen - Max. beam distance:
458 meters / 1503 ft / 501 yd - Max. intensity:
52441 Candela - Included:
2× 21700 Li-ion 5000 mAh - No USB charge port — external charger required

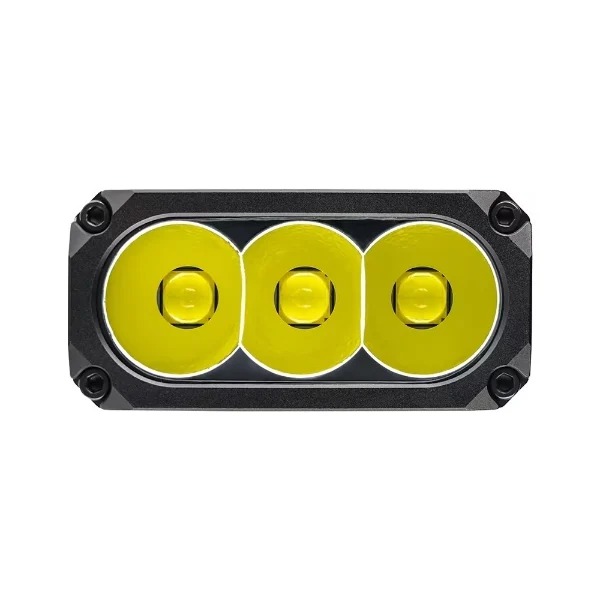

- 3× CREE XHP70.2 white

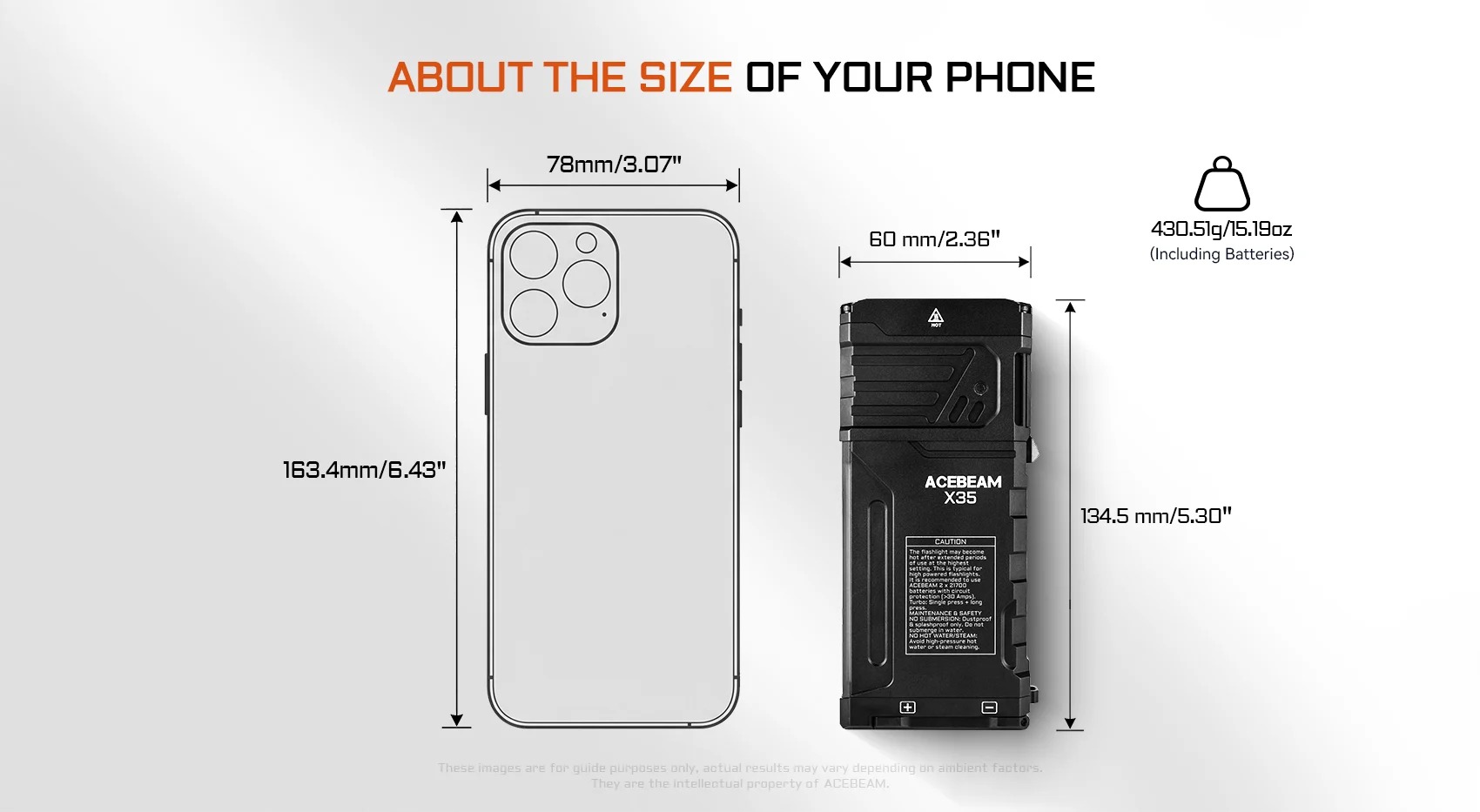

- Head diameter:
60 mm / 2.36 in - Body diameter:
63.5 mm / 2.50 in - Length:
134.5 mm / 5.30 in - Weight without battery:
480.81 g / 17.0 oz - Water resistance:
IP66 - Impact resistance:
1 m / 3.3 ft

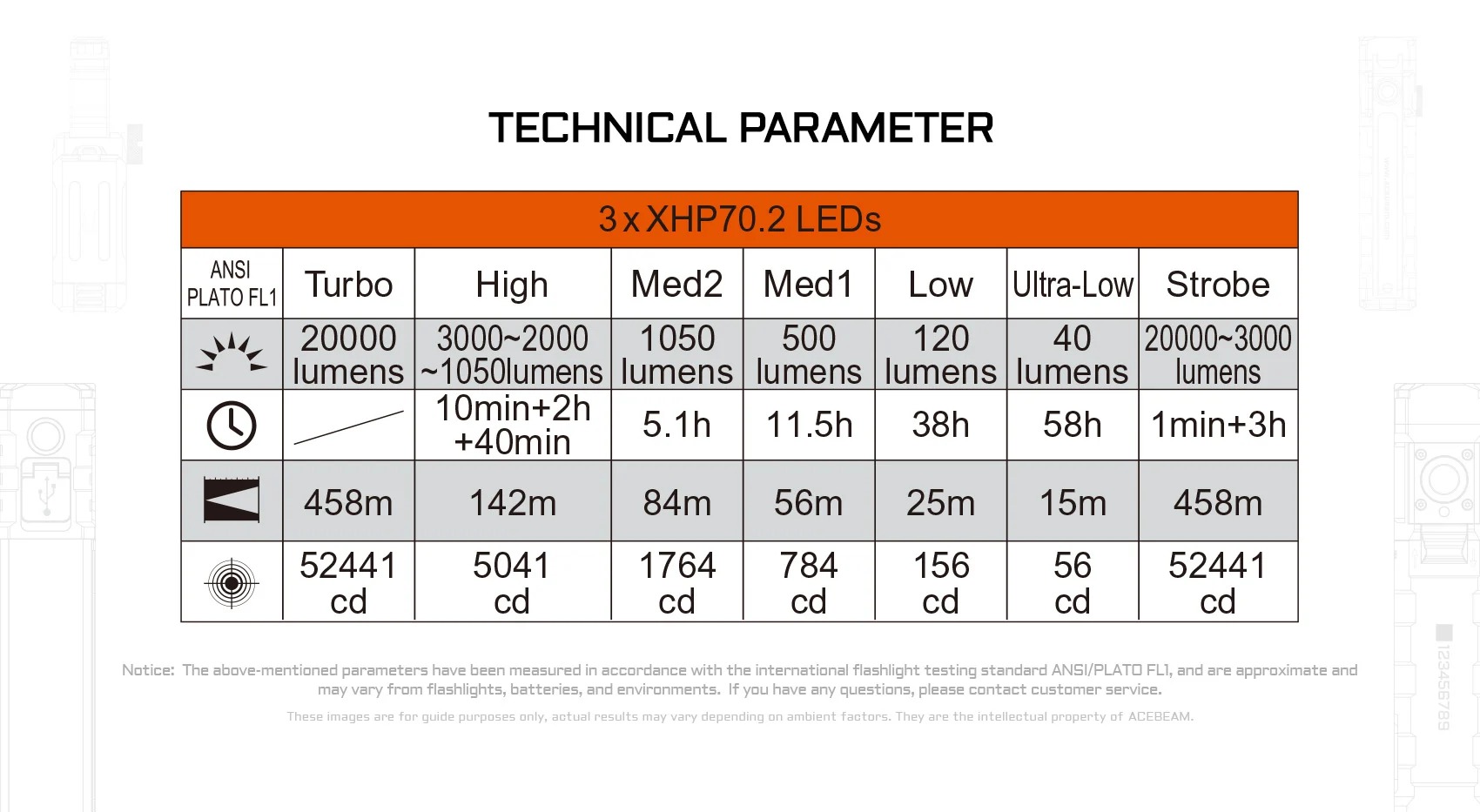

Output modes
| Combined output modes | ||||
|---|---|---|---|---|
| Level | Lumen | Beam distance | Candela | Runtime |
| Turbo | 20000 | 458 m / 1503 ft | 52441 | |
| High | 3000 | 142 m / 466 ft | 5041 | 2h 50min |
| Med2 | 1050 | 84 m / 276 ft | 1764 | 5h 6min |
| Med1 | 500 | 56 m / 184 ft | 784 | 11h 30min |
| Low | 120 | 25 m / 82 ft | 156 | 38h |
| Ultra-Low | 40 | 15 m / 49 ft | 56 | 58h |
| Flood modes | ||||
|---|---|---|---|---|
| Level | Lumen | Beam distance | Candela | Runtime |
| Turbo | 190 | 6h 30min | ||
| High | 75 | 17h | ||
| Med | 30 | 41h | ||
| Low | 9 | 106h | ||

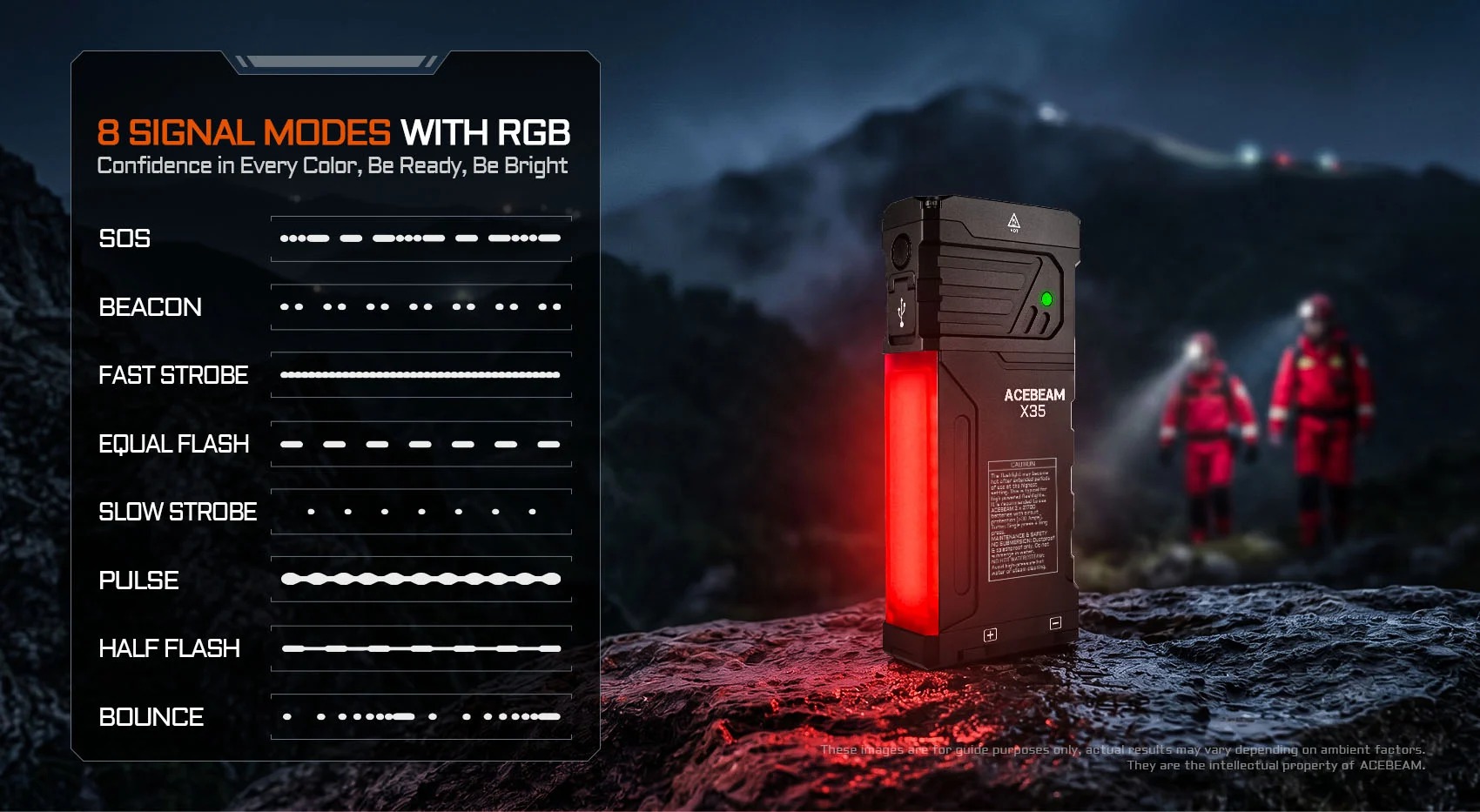

| Special modes | ||||
|---|---|---|---|---|
| Level | Lumen | Beam distance | Candela | Runtime |
| Strobe | 20000 | 458 m / 1503 ft | 52441 | 3h 1min |
