ACEBEAM · P20 Mini

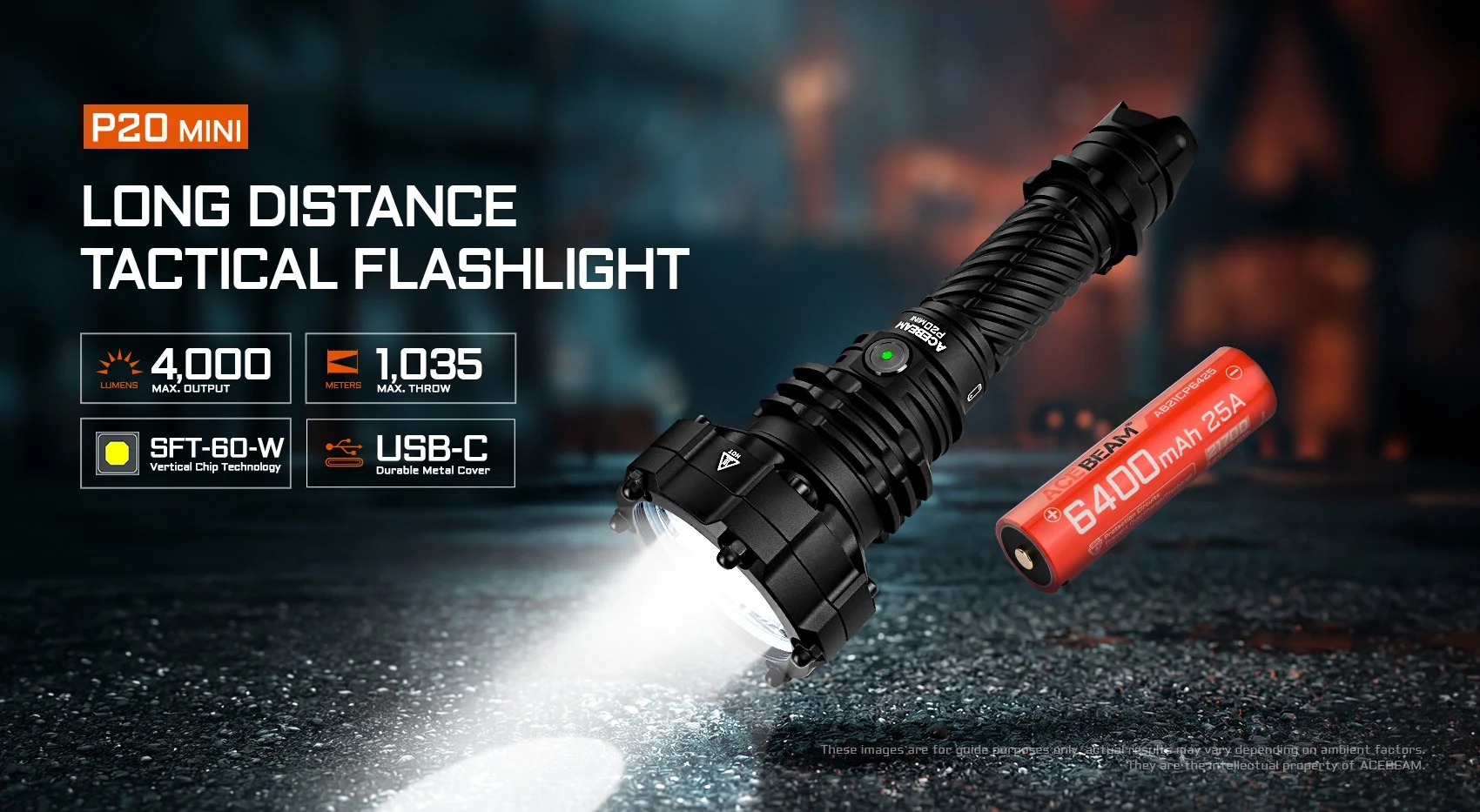

ACEBEAM P20 Mini
Beam profile
Beam angle estimated (from lumens and beam distance)
Hover the diagram to see beam width at distance.
Specifications
- Max. output:
4000 Lumen - Max. beam distance:

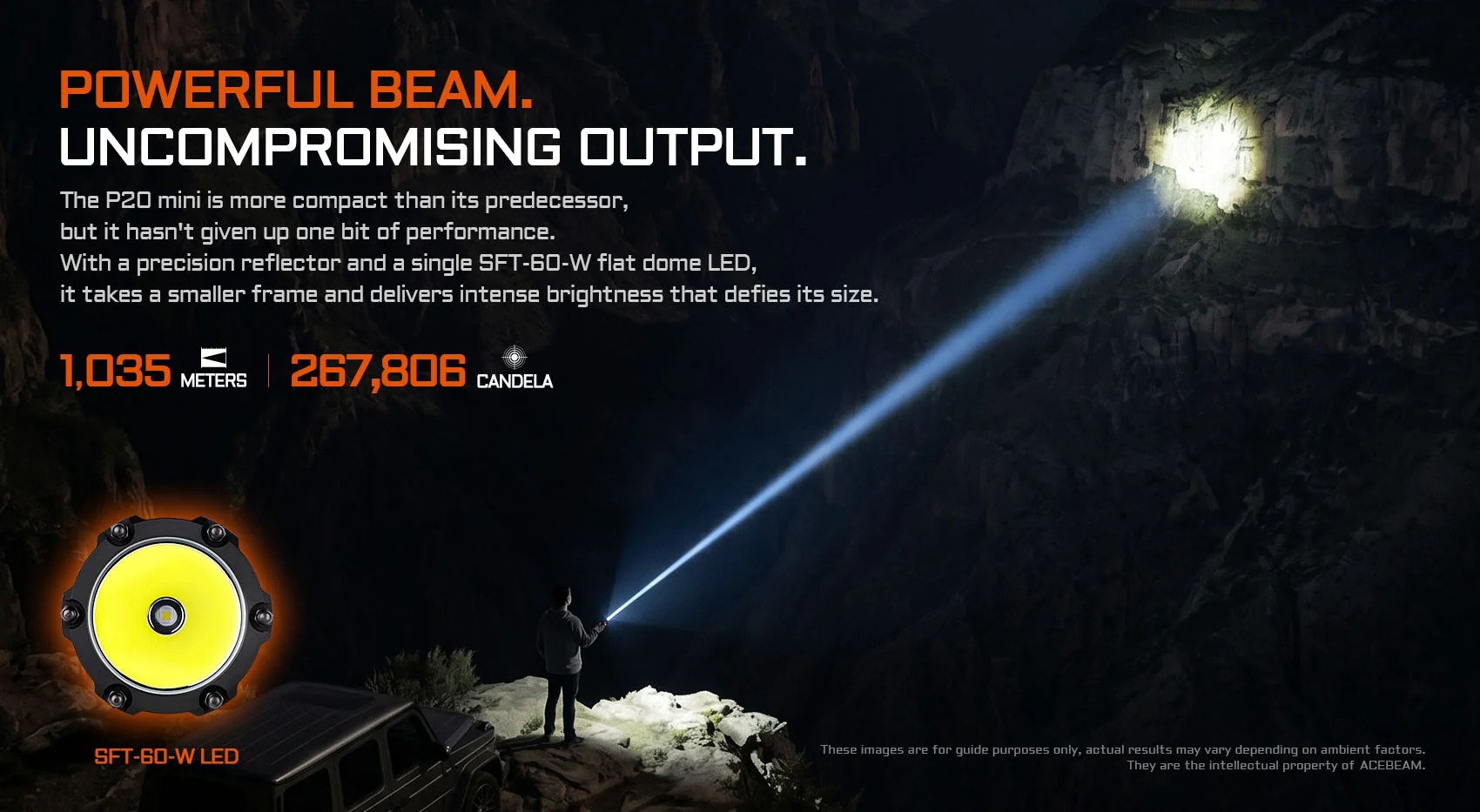

1035 meters / 3396 ft / 1132 yd - Max. intensity:

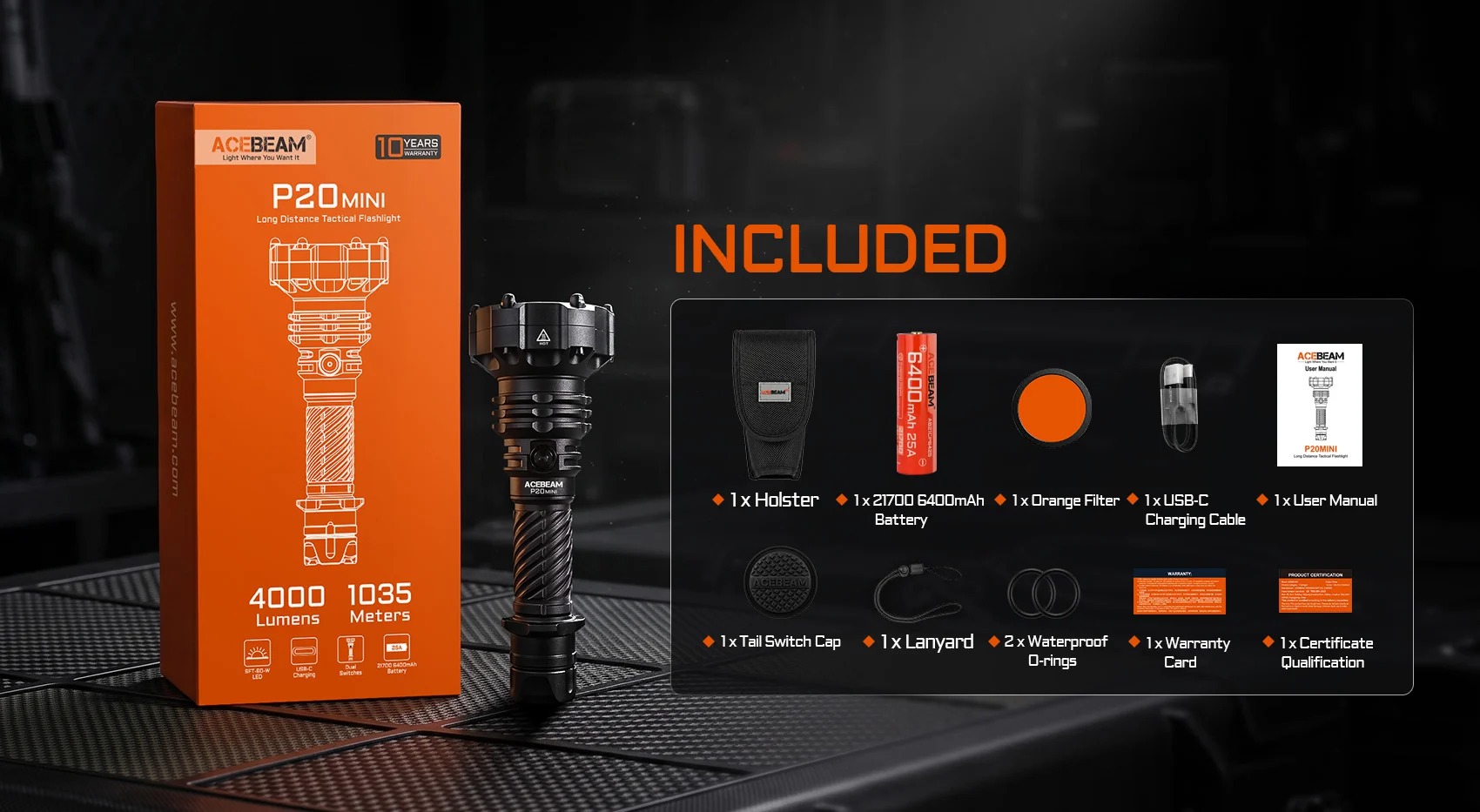

267806 Candela - Included:

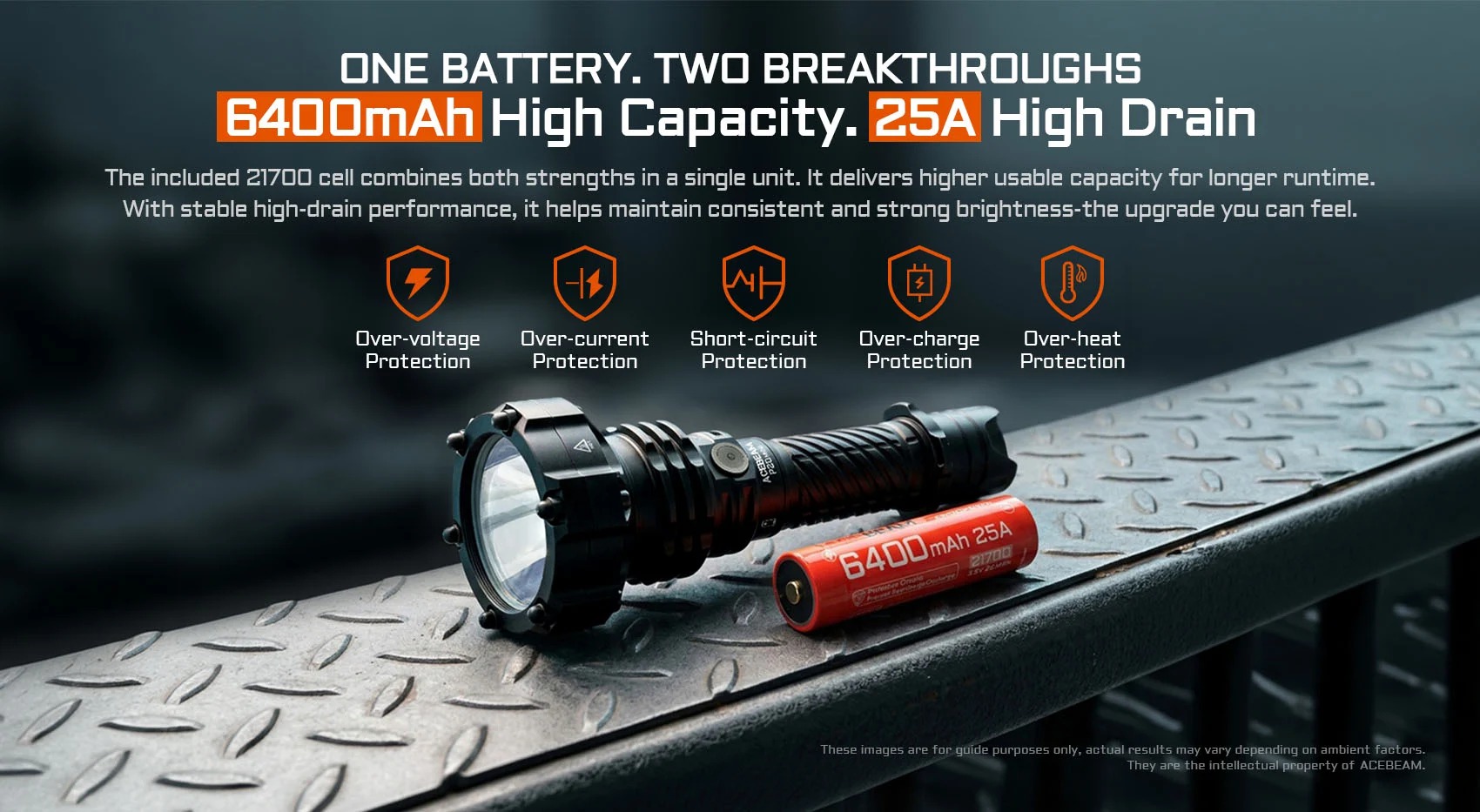

1× 21700 Li-ion 6400 mAh - No USB charge port — external charger required

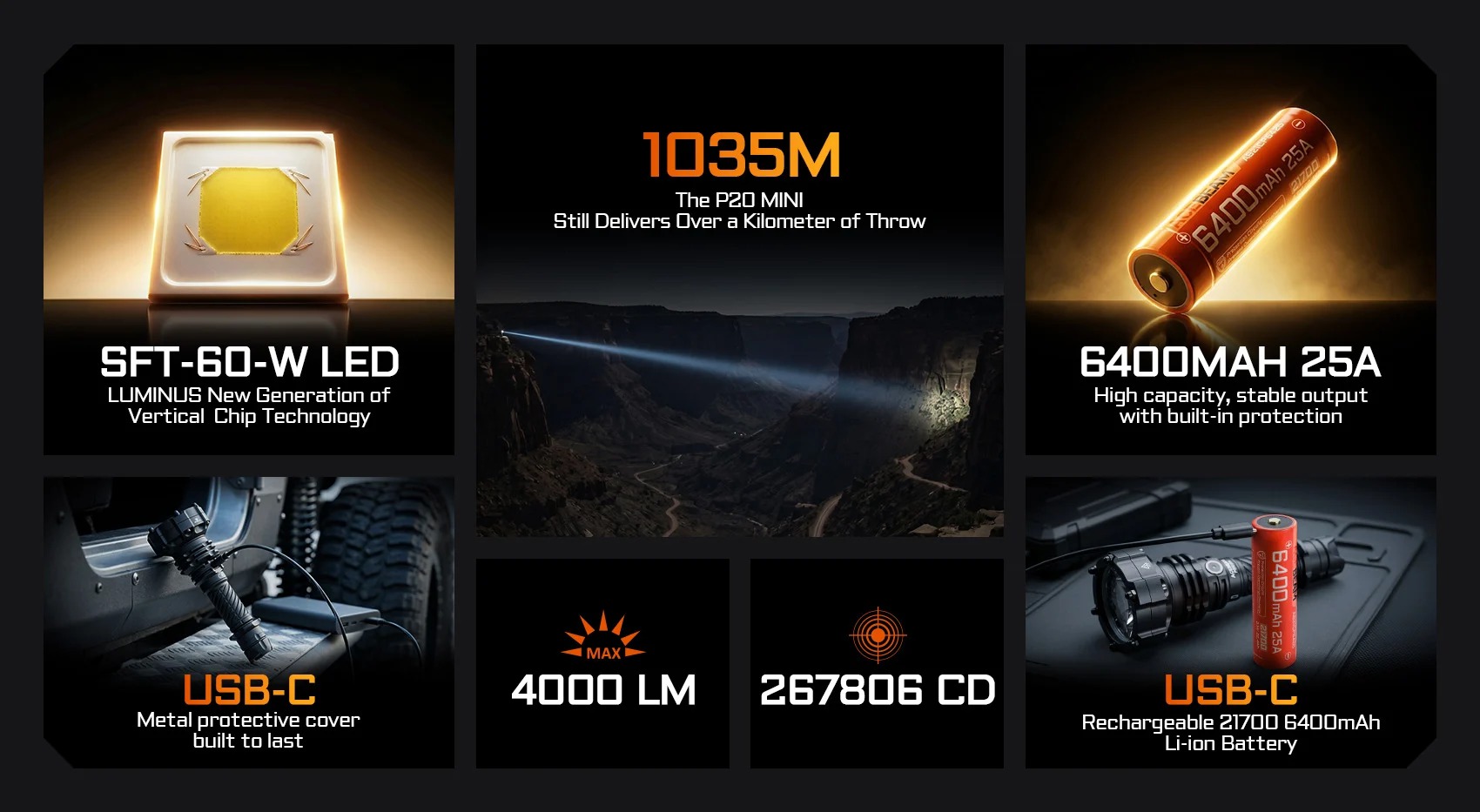

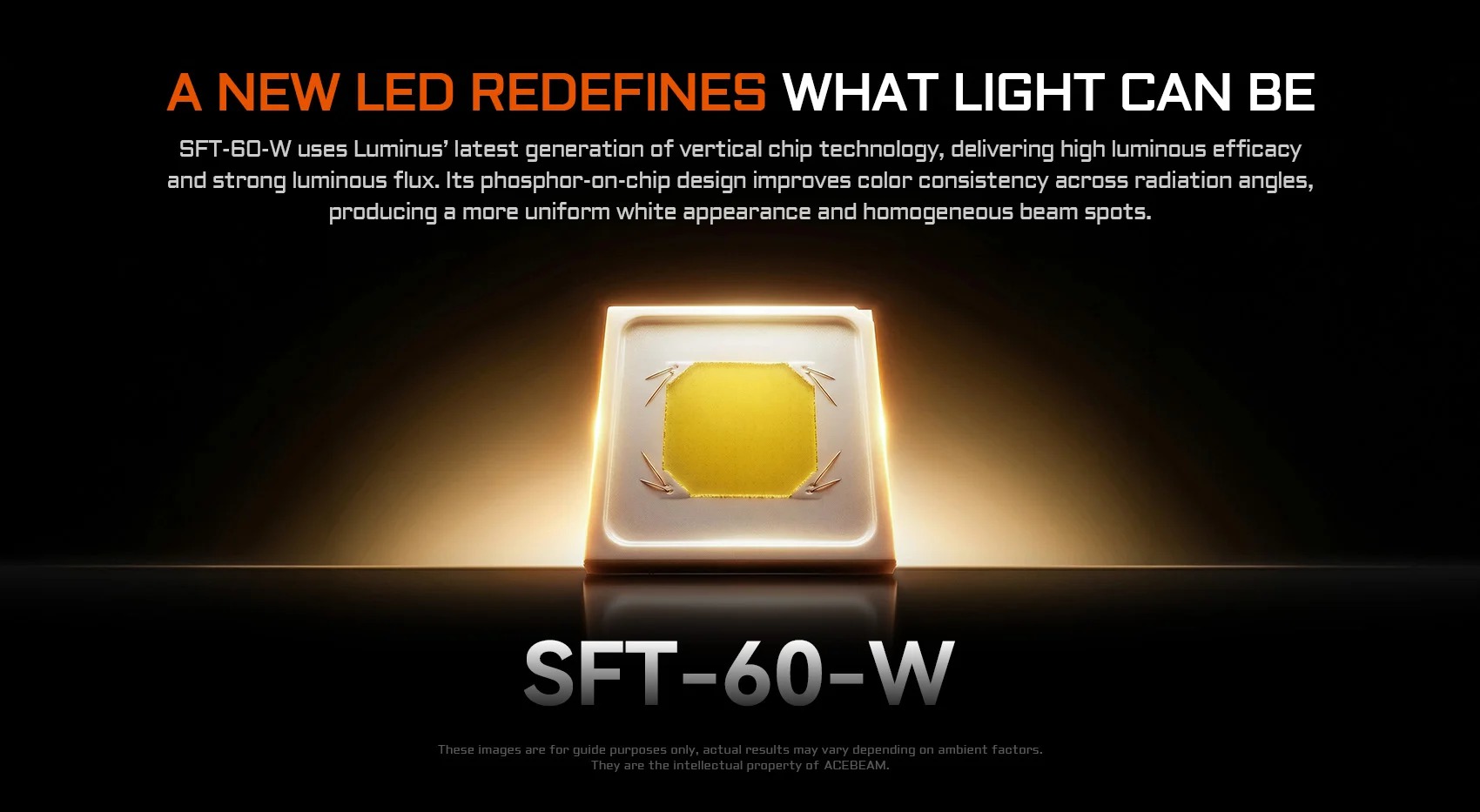

- 1× SFT-60-W 6500K

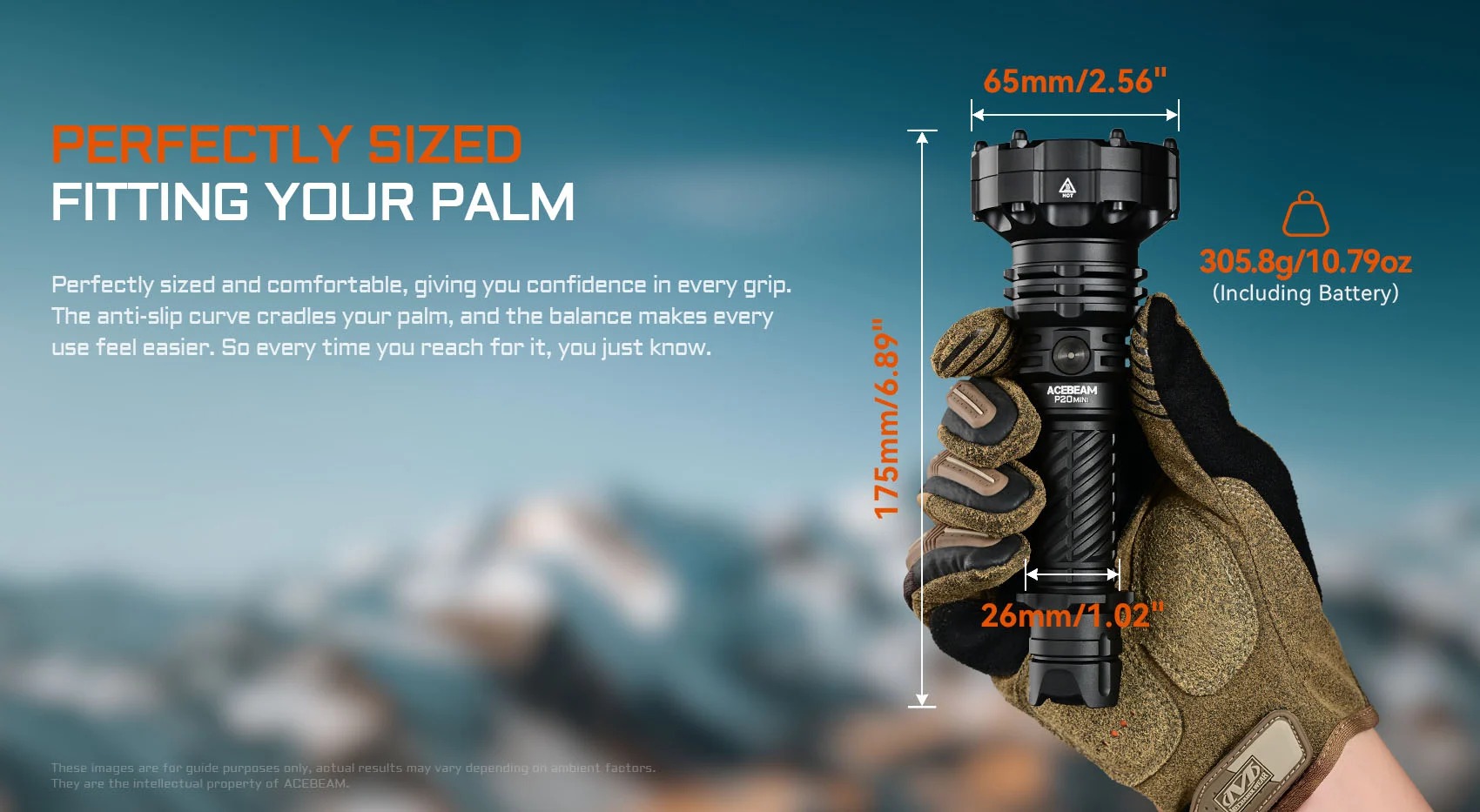

- Head diameter:
65 mm / 2.56 in - Body diameter:
26 mm / 1.02 in - Length:
175 mm / 6.89 in - Weight with battery:

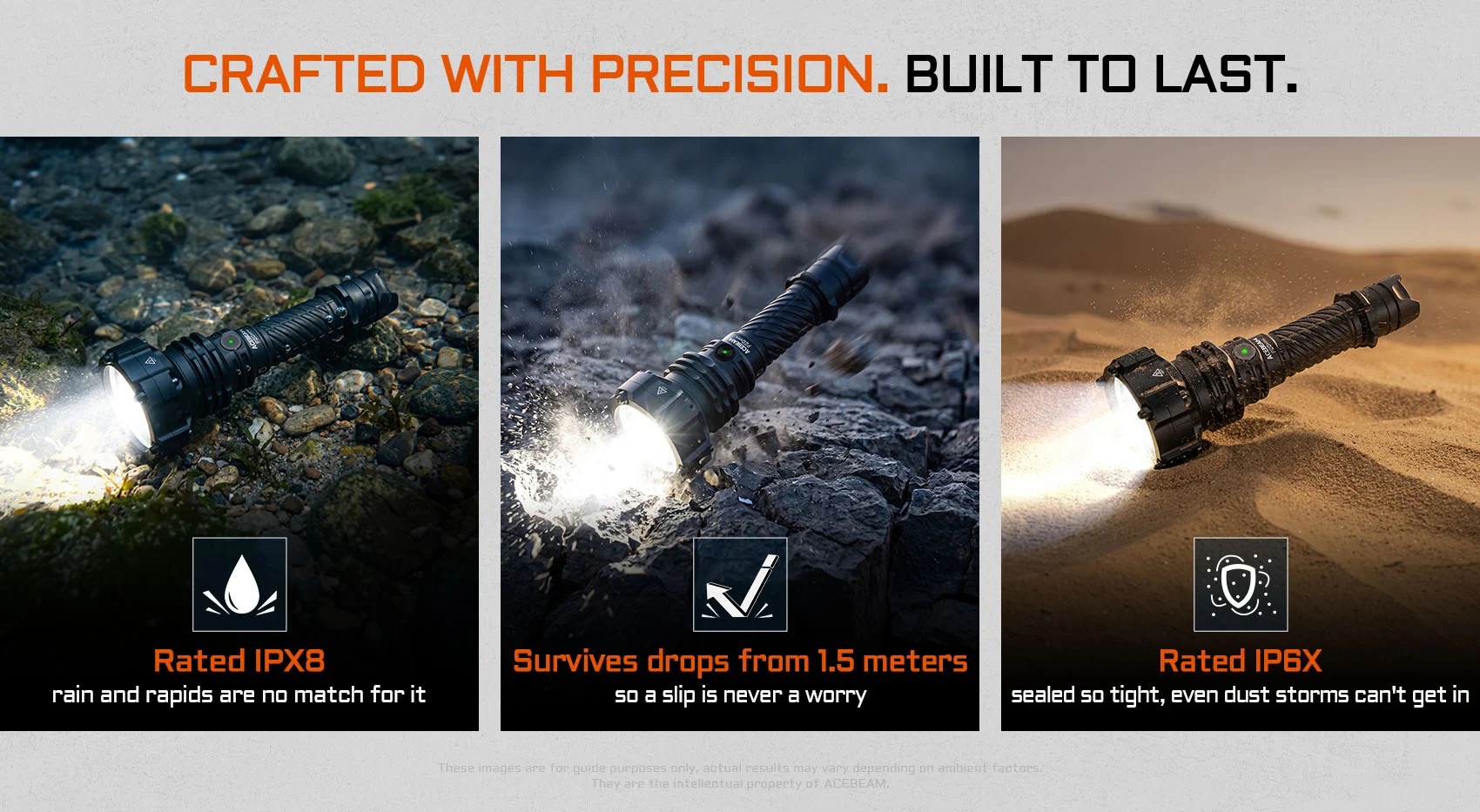

305.8 g / 10.8 oz - Water resistance:

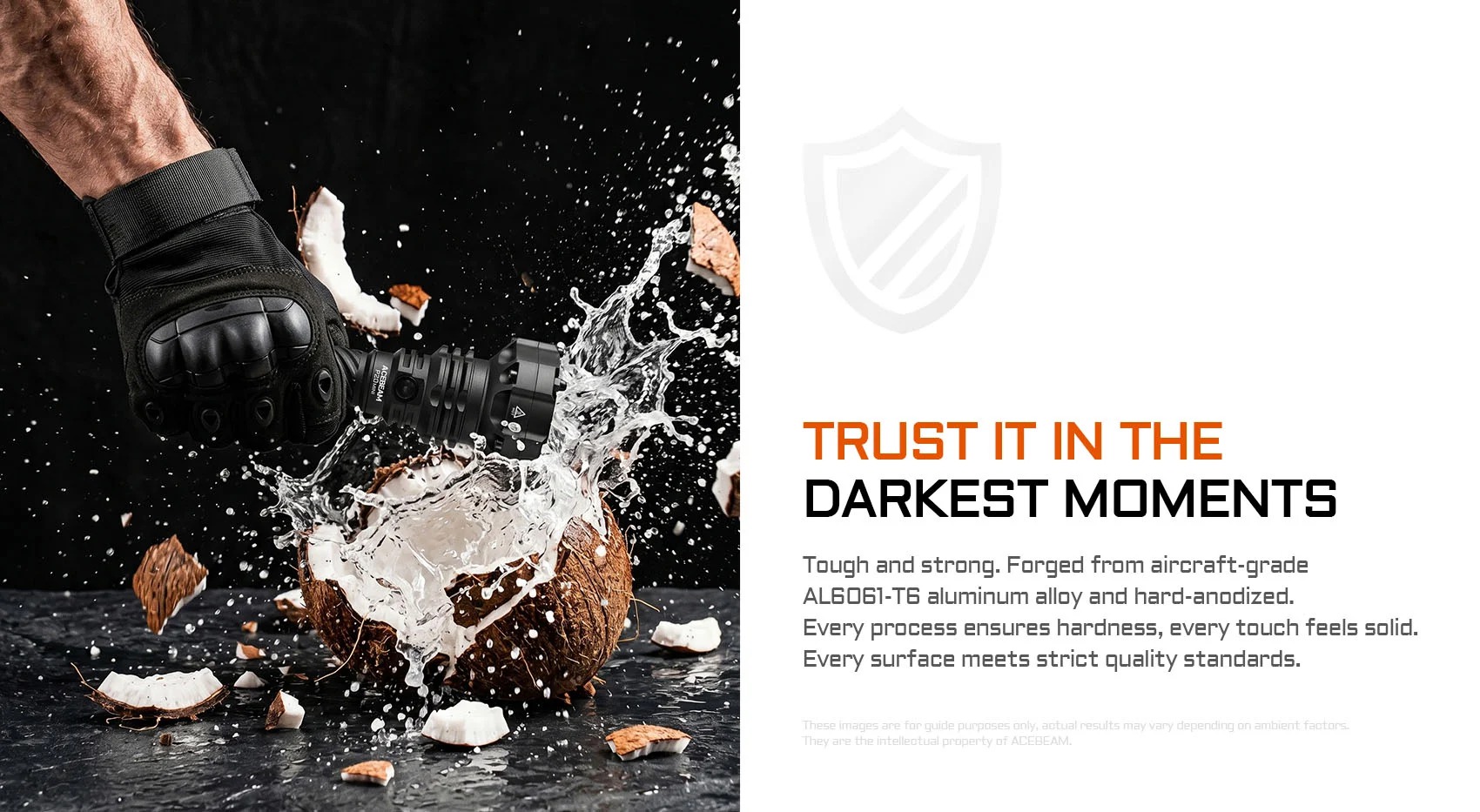

IP68 - Impact resistance:
1.5 m / 4.9 ft

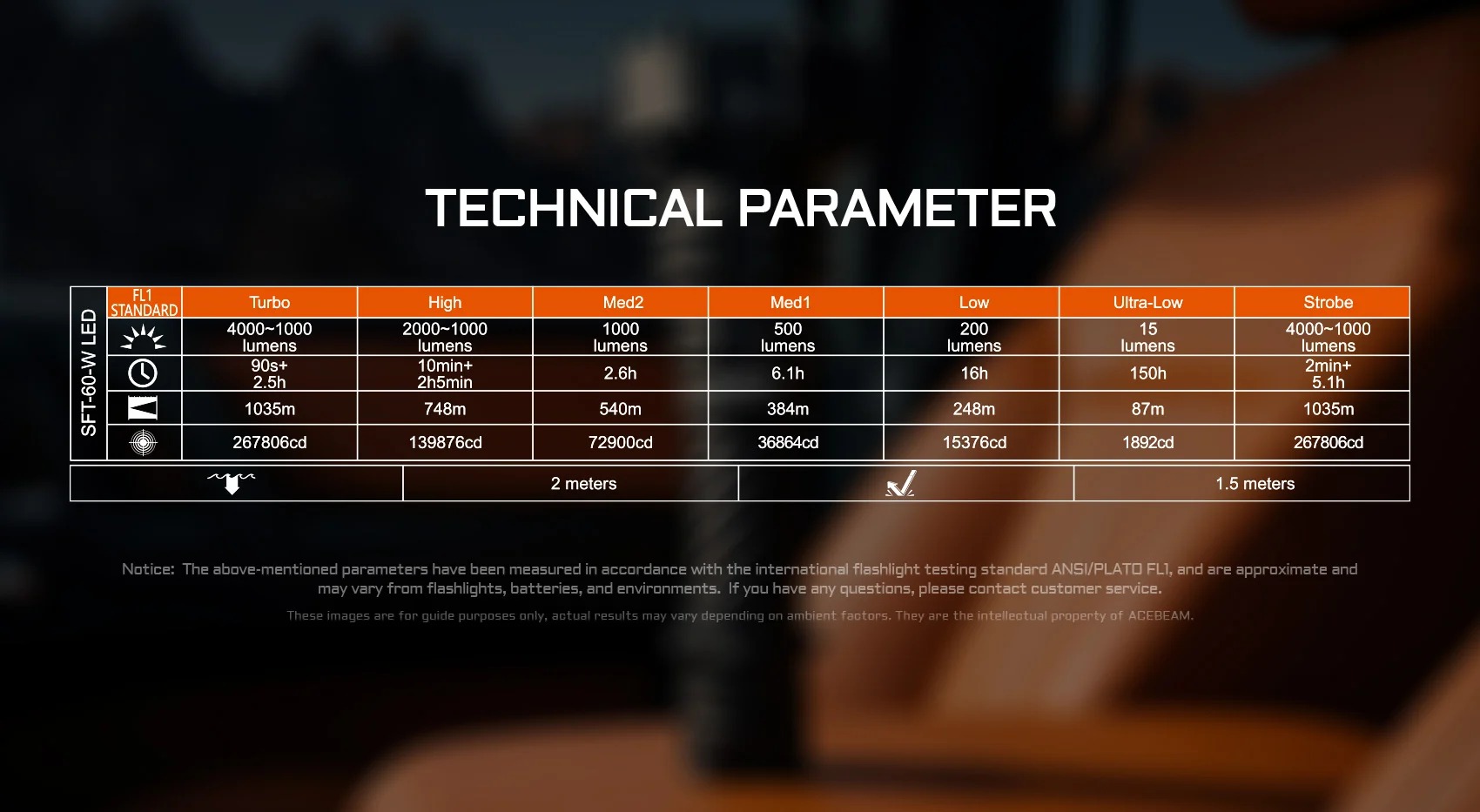

Output modes
| Combined output modes | ||||
|---|---|---|---|---|
| Level | Lumen | Beam distance | Candela | Runtime |
| Turbo | 4000 | 1035 m / 3396 ft | 267806 | 2h 31min |
| High | 2000 | 748 m / 2454 ft | 139876 | 2h 15min |
| Med 2 | 1000 | 540 m / 1772 ft | 72900 | 2h 36min |
| Med 1 | 500 | 384 m / 1260 ft | 36864 | 6h 6min |
| Low | 200 | 248 m / 814 ft | 15376 | 16h |
| Ultra Low | 15 | 87 m / 285 ft | 1892 | 150h |
| Special modes | ||||
|---|---|---|---|---|
| Level | Lumen | Beam distance | Candela | Runtime |
| Strobe | 4000 | 1035 m / 3396 ft | 267806 | 5h 8min |
