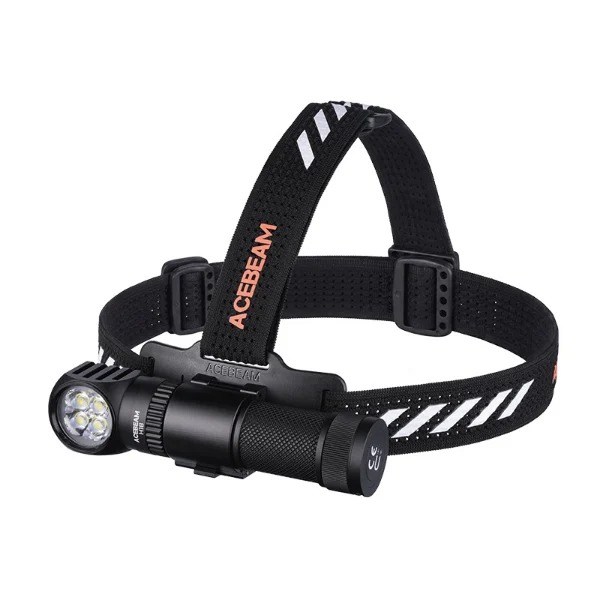

Acebeam · H18
Acebeam H18
Beam profile
Beam angle estimated (from lumens and beam distance)
Hover the diagram to see beam width at distance.
Specifications
- Max. output:
4000 Lumen - Max. red output:
70 Lumen - Max. beam distance:
162 meters / 531 ft / 177 yd - Max. intensity:
6561 Candela - Included:
1× 21700 Li-Ion 6400 mAh - No USB charge port — external charger required
- 4× white

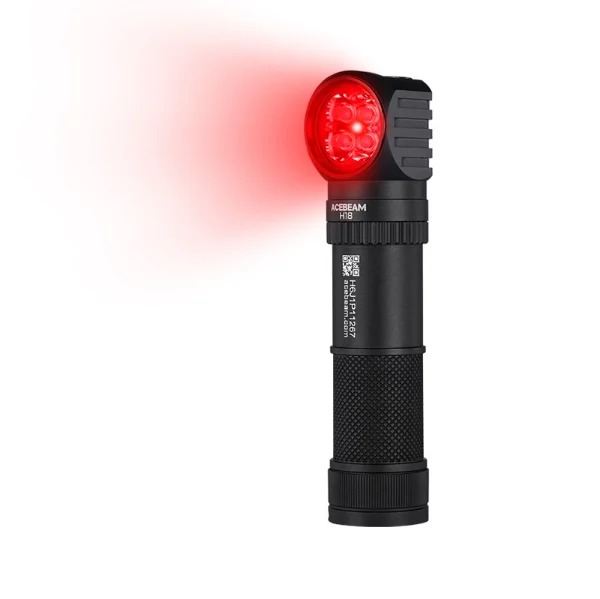

1× red - Head diameter:
27 mm / 1.06 in - Body diameter:
23.8 mm / 0.94 in - Length:
119.2 mm / 4.69 in - Weight without battery:
70 g / 2.5 oz - Water resistance:
IP68 - Impact resistance:
2 m / 6.6 ft
Output modes
| Flood modes | ||||
|---|---|---|---|---|
| Level | Lumen | Beam distance | Candela | Runtime |
| Turbo | 4000 | 162 m / 531 ft | 6561 | 3h 40min |
| High | 1400 | 100 m / 328 ft | 2500 | 3h 40min |
| Med 2 | 420 | 52 m / 171 ft | 676 | 7h |
| Med 1 | 220 | 39 m / 128 ft | 380 | 13h |
| Low | 45 | 20 m / 66 ft | 100 | 60h |
| Ultra Low | 7 | 8 m / 26 ft | 16 | 280h |
| Special modes | ||||
|---|---|---|---|---|
| Level | Lumen | Beam distance | Candela | Runtime |
| SOS | 45 | 20 m / 66 ft | 100 | 150h |
